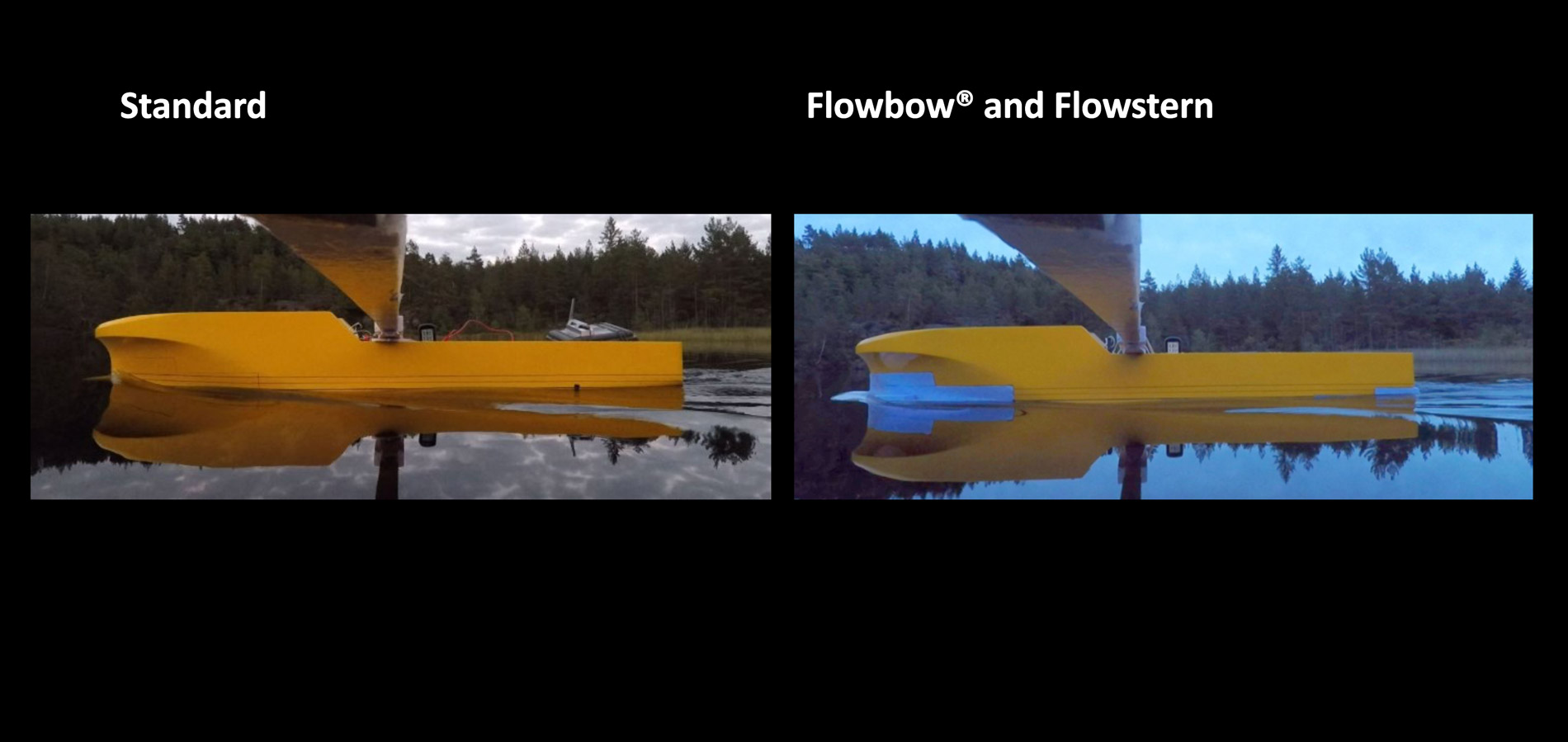

Model of 90 meter Ro-Ro vessel​

13.1 knots Fn = 0.227

14.1 knots Fn = 0.245

14.8 knots Fn = 0.257

15.5 knots Fn = 0.269

16.2 knots Fn = 0.281

16.9 knots Fn = 0.293

17.6 knots Fn = 0.305

18.2 knots Fn = 0.317

18.9 knots Fn = 0.329

20.0 knots Fn = 0.347

20.7 knots Fn = 0.359

Powerconsumtion vs. velocity​

Reduction in resistance for 90m vessel with Flowbow® ​
and Flowstern

At 17.0 knots, resistancereduction approx. 17%​
At 18.0 knots, resistancereduction approx. 28%​
At 19.5 knots, resistancereduction approx. 37%

Reduction in fuel/energy consumption per distance versus velocity.

The graphs show considerable reduction in fuel/energy consumption per distance, compared to traditional hull design, as velocity increases.
This also allow vessels to be operated at considerable higher cruising speed with good fuel economy.

Model test, powerconsuption vs. velocity​

Data from model testing is to be up scaled from model to full-scale vessel, resulting in a greater percentage reduction of the resistance than shown in model testing.
